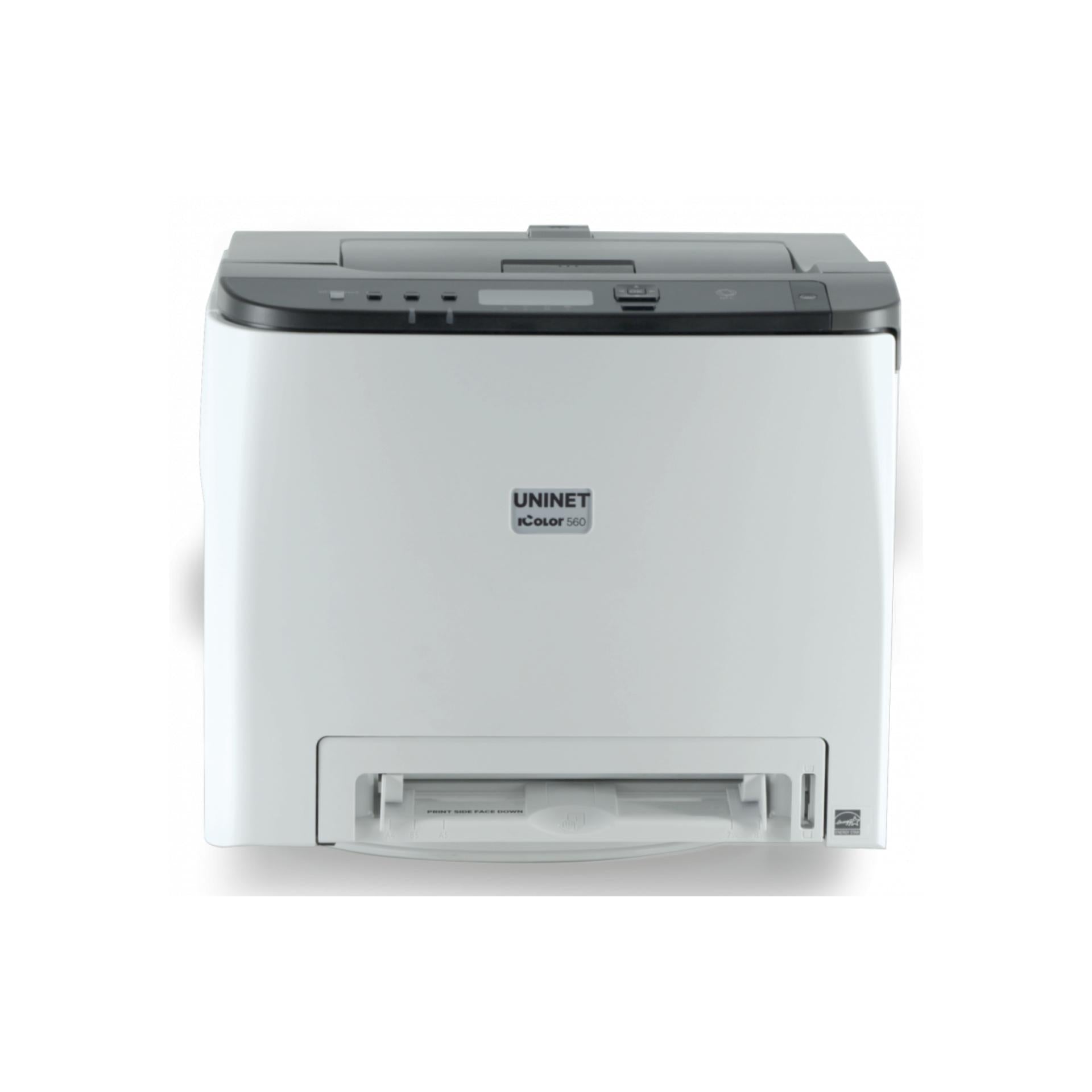

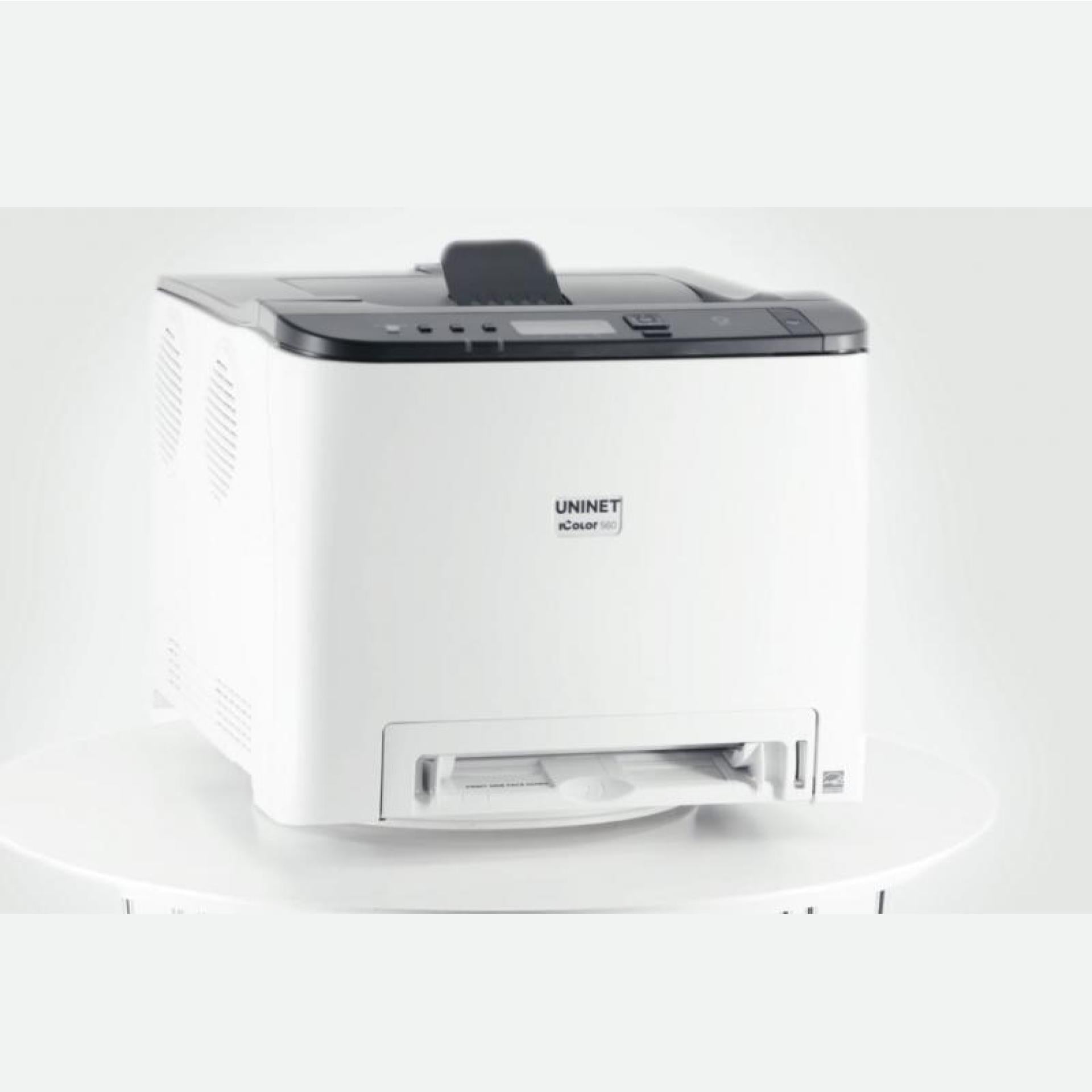

IColor™ 560 White Toner Transfer Printer 120V
IColor™ 560 White Toner Transfer Printer 120V
Couldn't load pickup availability
UNINET® Part #ICP560W120SM (User manual)
Welcome to state-of-the-art Digital Color + White Transfer printing! The UNINET™ IColor® 560 is the ultimate toner-based digital transfer printer combined with exclusive white overprint®® and underprint®® capabilities in a single pass for transfer production of apparel, textile, hard surfaces, and more.
The Best-in-Class Total Cost of Ownership, Plain and Simple.
With its higher yield white toner cartridge capacity of 7,000 pages + full-color capabilities, the IColor® 560 combines absolute versatility with a superstar performance for on-demand printing of short to mid-run transfer production of garments, hard surfaces, product customization, merchandising materials, and more.
Welcome to state-of-the-art Digital Color + White Transfer printing! The UNINET™ IColor® 560 is the ultimate toner-based digital transfer printer combined with exclusive white overprint®® and underprint®® capabilities in a single pass for
Helping You Do More With Your Brand.
The IColor® 560 offers everything you need to evolve and grow your business. Feature and customize your brand on garments, hard surfaces, and more in any quantity. Produce personalized items such as t-shirts, aprons, mugs, and bags, as well as non-transfer applications such as stationery, invitations, menus, envelopes, labels, window decals, brochures, signs, packaging prototypes, and much more.
Buy One. Get Six!
The IColor® 560 does it all.
- White overprint®® for textile and apparel applications
- White underprint®® for non-transfer applications NOTE: IF YOU ARE PURCHASING THIS PRINTER FOR WATERSLIDE/AQUACLEAR/DECAL APPLICATIONS, PLEASE SPEAK WITH A SALES REP FIRST!
- Dye Sublimation applications
- Fluorescent colors and Clear
- Regular CMYK transfers
- Gold and Silver color printing capabilities
Share
Collapsible content
Specifications
PRINT SPEED: Up to 8 ppm on transfer paper; up to 26 ppm on standard copy paper
PROCESSOR: 350 MHz
DUTY CYCLE: Up to 65,000 pg/mo.
MEMORY: 256 MB
RESOLUTION: 2400 X 600 dpi
OPERATING SYSTEM: Windows 7 / 8 / 10
INTERFACES: 10/100-TX Ethernet, Wireless LAN, High-Speed USB v2.0, WIFI
PAPER CAPACITY: Standard 251 sheets; handles transfer media, card and mailing label stock
PAPER SIZES (MIN / MAX): Tray1: A4, A5, A6, B4, B5, Legal, Letter, HLT Bypass tray: A4, A5, A6, B5, B6, Legal, Letter, HLT
DIMENSIONS: (WxDxH): 15.7" x 17.7" x 13.1" (400 x 450 x 334 mm)
WEIGHT: 55 lb (25 kg)
POWER: 120V
Toner Cartridge Yield (All rated at 5% coverage): Extended CMYK: 7,000 pages, Extended White: 7,000 pages, Starter CMYK: 1,000 pages, Starter White: N/A
What is included
The IColor® 560 comes standard with five toner cartridges for full color and white printing (CMYW plus True Black).
IColor® ProRIP Essentials software for white overprint®® and underprint®® functionality, as well as color changes, image manipulation, and rasterization on the fly! ProRIP and ProRIP Essentials software NOT compatible with Snapdragon processors.
Exclusive IColor® SmartCUT Enhanced RIP Software included allowing the user to print oversized images like tabloid and greater, plus Selective Masking and Real Preview Tools.
White Toner Master Class and Quick Start Guide Video.
White Toner Beginners Notebook.
Transfer paper and other consumables and media are not included - check out our web bundles for a more comprehensive solution.
This item is also available from our Worldwide dealer network.
Winning features
- New for 2023 (120v models) - Now includes the exclusive White Toner Master Class.
- Exclusive white overprint® and underprint® capabilities in a single pass.
- Gold and Silver optional toner upgrade kits available.
- IColor™ White Toner Higher Yield cartridge capacity of 7,000 pages extending print cycles and considerably reducing printing costs.
- WiFi as well as WiFi direct, and NFC capable (in CYMK mode).
- Cutting-edge technology to produce digital transfers in a fast, and efficient fashion to be pressed onto virtually any type of dark or light-colored textile and hard surface materials such as ceramic, glass, wood, acrylics, metal, magnetic sheeting, leather, and more.
- Incorporated IColor™ ProRIP Essentials software for automated production-level printing with advanced color management and customized print modes; as well as color changes, image manipulation, and rasterization on the fly.
- Exclusive IColor™ SmartCUT Enhanced RIP Software software included for oversized images like tabloid and greater.
- A toner-based system that does not require the maintenance associated with ink-based printers.
- Exceptional 2400 dpi resolution vs. the competition.
- Includes All-in-one five toner cartridges & drum printing system W/C/M/Y + BK for full color and white printing (CMYW plus True Black).
- Easily swap back and forth between regular and specialty cartridge kits, eliminating the need to purchase separate machines to accomplish each function.
- A complete seamless transfer printing solution comprised of hardware, software, and transfer papers.
- The definition of “workhorse” for any startup!
Video Tutorials

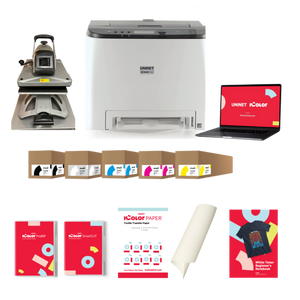

Buy bundles and save!
Enhance Your Apparel Decorating Business With Unlimited option to create
Expand your business opportunities and tap into a wide variety of market segments by transforming a wide variety of garments, accessories, and more into marketable creations. Produce stunning graphics with both color and white, in addition to optional gold or silver color printing capabilities for application to virtually any dark or light-colored textile or substrate. The printed image will result in a soft to the touch and bright-colored, and the garment can be washed over and over without damage to the transfer.
